Multi-layer TFC Structure
Advanced thin film composite design for higher rejection rates and optimal flux.
Automated Coating
Precision automated processes ensuring uniform coating for consistent membrane performance.
Quality Control
Rigorous 100% automatic real-time quality testing on all production lines.
Surface Modification
Optimized membrane surfaces for anti-fouling and long-term reliable operation.
The Core of Pure Water.
A premier manufacturer of state-of-the-art RO Membrane Sheets, recognized by Water Digest with UNESCO & ASSOCHAM.
Committed to providing unmatched RO sheet engineering through continuous innovation and comprehensive quality assurance.

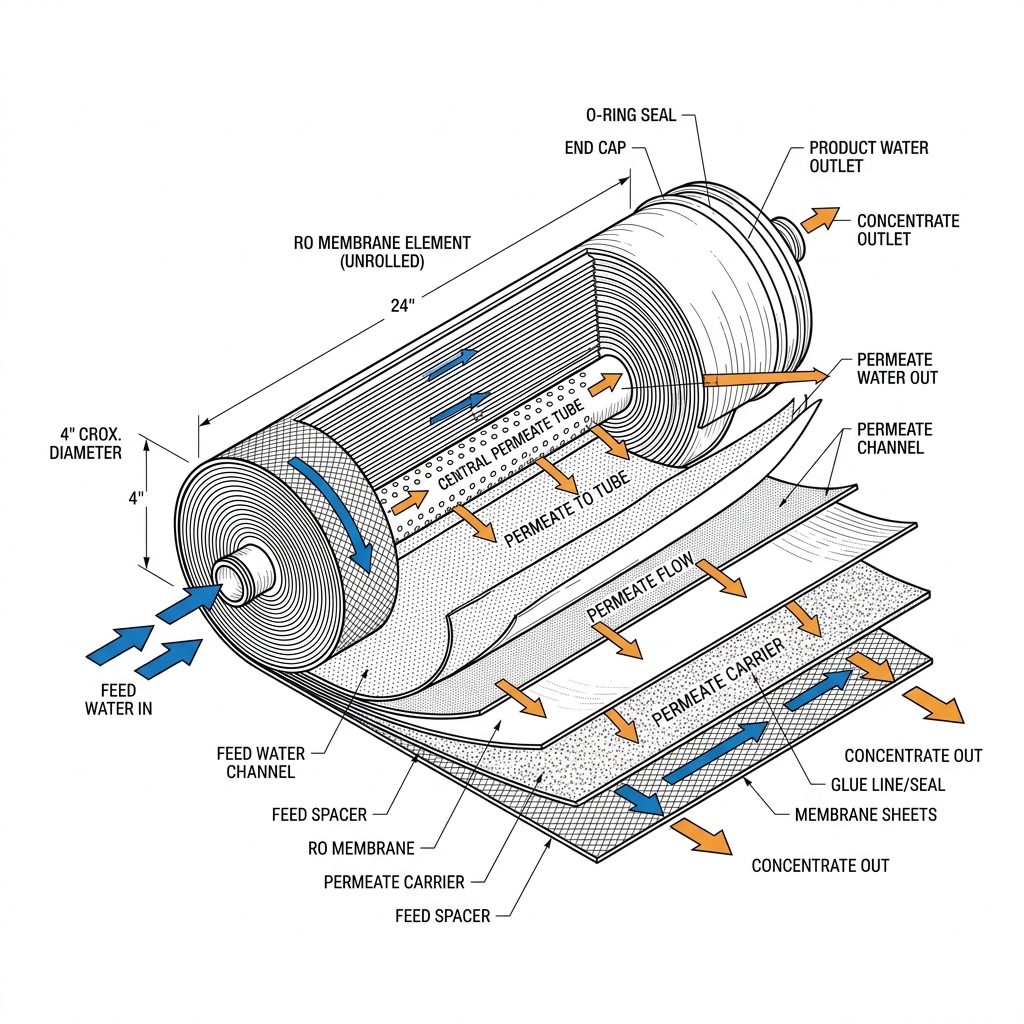

Technology That Defines Performance
Our company utilizes world-class state-of-the-art automated production lines with a daily capacity of over 100,000 meters. The core technology involves the precise application of multiple layers to create a high-performance membrane.
Multi-layer TFC Structure
Polyamide active layer, Polysulfone support layer, and Polyester non-woven base.
Automated Coating
Automated production line ensures uniform coating and zero defects.
Quality Control
Rigorous testing of every batch for rejection rate, flux, and physical properties.
Surface Modification
Advanced hydrophilic treatment for superior anti-fouling performance.
High-Performance RO Membrane
Product Categories
Domestic RO Membrane Sheets (HF & HR Series)
For municipal/borewell water desalination up to 1500–3000 ppm. HF and HR variants deliver exceptional purity for drinking water at low operating pressure.
- HF: Rejection 99.3–99.5%, Flux 0.21–0.26 GFD/PSI
- HR: Rejection 99.4–99.55%, Flux 0.20–0.25 GFD/PSI
- Operating: 150 psi (1.03 MPa), pH 7.5–8.0
Industrial RO Membrane Sheets (ULP & HR Series)
For raw water and brackish water desalination up to 3000 ppm. Ideal for oil, pharma, cement, textile industries and power plant boiler feed water treatment.
- ULP: Rejection ≥99.4%, Flux 0.19–0.24 GFD/PSI
- HR: Rejection ≥99.7%, Flux 0.16–0.20 GFD/PSI
- Near zero effluent discharge capability
HF Series — High Flow Membrane Sheets
Maximises water production at low pressure. Available in Domestic and Industrial grades. Width: 1067mm (42”), Thickness: 125–135 μm, Carton: 500 m².
- Domestic HF: 99.3–99.5% rejection, up to 1500 ppm
- Industrial ULP: ≥99.4% rejection, up to 1500 ppm
- Test condition: 1000 ppm NaCl, 150 psi, 25°C
HR Series — High Rejection Membrane Sheets
Engineered for high TDS water up to 3000 ppm. Both Domestic HR and Industrial HR variants deliver maximum salt rejection for critical water purification needs.
- Domestic HR: 99.4–99.55% rejection, up to 3000 ppm
- Industrial HR: ≥99.7% rejection, up to 3000 ppm
- Test condition: 1000–2000 ppm NaCl, 150 psi, 25°C
Production Workflow
Support Membrane Preparation
The base polyester non-woven fabric is coated with a polysulfone support layer to provide high mechanical strength and porosity.
Interfacial Polymerization
Advanced chemical reaction forms the Thin-Film Composite (TFC) polyamide active layer, the critical barrier for salt rejection.
Quality Inspection & Testing
Each batch undergoes rigorous real-time automated testing for flux, rejection rate, and physical integrity before packaging.
